Ancar Series 1 Unit

 Digital Control panel -

  Motor: Hanning Germany -

Structure : Aluminum -

 DCI Three way syringe and Hose -

 LED Faro Light -

Italian Multi functional pedal -

 Low & High vacuum hose -

Fakhrsina  PCB Electronic board -

Dental Unit Water Heater -

Ancar Series 3 Unit

 Touch Screen Control panel -

  Motor: Hanning Germany -

Structure : Aluminum -

 DCI Three way syringe and Hose -

 LED Faro Light -

Italian Multi functional pedal -

 Low & High vacuum hose -

Fakhrsina  PCB Electronic board -

Dental Unit Water Heater -

Dental Fakhr Sina model pegah2504/2 – FSSR

Pegah complete dental unit ( 4 tubes ), floor-mount

Speed-control gauge

4 tubes

Chair electromotors: Hanning Germany

Tubes: American

Electric valves: 5 pieces ( Italian )

Electronic parts: German, Japanese, Korean, Taiwanese

Structure: Aluminium

Made in Iran

two years guaranty

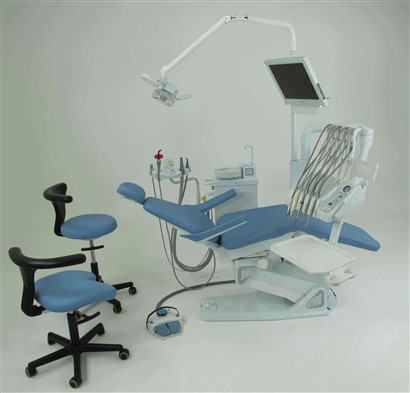

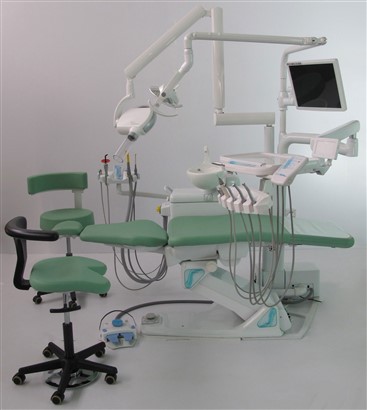

Dental unit Fakhr Sina model pegah2505/2

Pegah complete dental unit ( 5 tubes ) , floor-mount Equipped with a speed – control gauge 5 tubes Chair

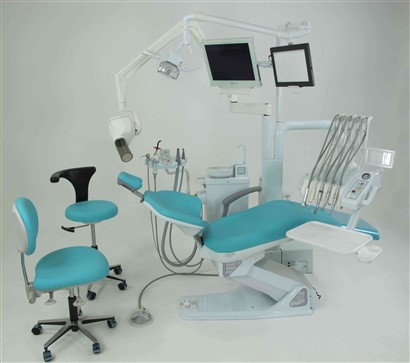

Dental unit Fakhr Sina model pegah2504/2

Complete Pegah unit (4 hoses), can be installed on the floor Equipped with a speed control gauge Has 4 hoses

Dental unit Fakhr Sina model pegah2503/2

Complete Pegah unit (3 hoses), can be installed on the floor Equipped with a speed control gauge Has 3 hoses

Dental unit with Fakhr Sina X-ray installation, model FSSH-Pegah2505/22

Pegah complete dental unit ( 5 tubes ), x-ray mountable

Equipped with a speed control gauge

5 tubes

Floor-mount

Chair electromotors: Hanning /  German 2015

Tubes: American

Electric valves: 5 Pieces (Italian)

Electronic parts: German, Japanese, Korean, Taiwanese

Made in Iran

two years guarantee

Fakhr Sina radiography dental unit model pegah2505/22

  • Complete Pegah unit (5 hoses)
  • RADIOGRAPHY MOUNTABLE
  • Equipped with a speed control gauge
  • Has 5 hoses
  • Can be installed on the ground
  • Seat electric motors: Hanning, Germany, 2015
  • American hoses
  • 5 Italian electric valves
  • Electronic components from Germany, Japan, Korea and Taiwan
  • Made in Iran
  • 2 years warranty

Fakhr Sina radiography dental unit model pegah2504/22

Pegah complete dental unit ( 4 tubes ),x-ray mountable Equipped with a speed –control gauge Floor-mount 4 tubes Floor_mount Chair

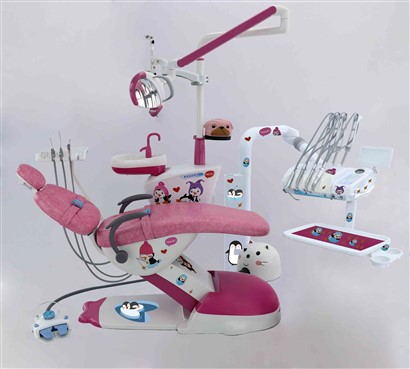

Pediatric unit P2-FSXJC- (CO-Production)

Equipped with a speed-control gauge 4 tubes Floor_mount Chair electromotors: Hanning  German Tubes: American Electric valves: Italy, Taiwan Electronic parts:

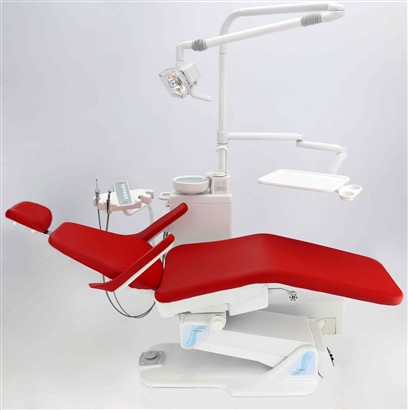

Fakhr Sina orthodontic dental unit model FSSR- Pegah2501/3

Pegah orthodontic dental unit Chair electro motors: Hanning German           Tubes: American Electric valves: 5 pieces Italian Electronic valves: German,

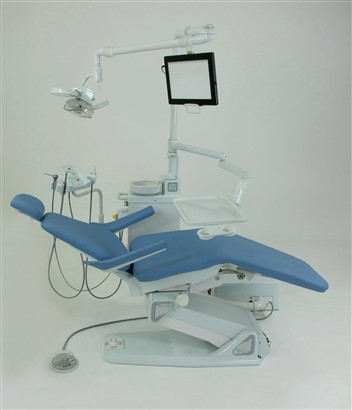

Fakhr Sina surgical dental unit model pegah2500/1

Pegah surgical unit (chair, lamp, Cuspidor and surgical tray)

Seat electric motors: Hanning, Germany, 2015

American hoses

5 Italian electric valves

Electronic components from Germany, Japan, Korea and Taiwan

2 years warranty

Made in Iran

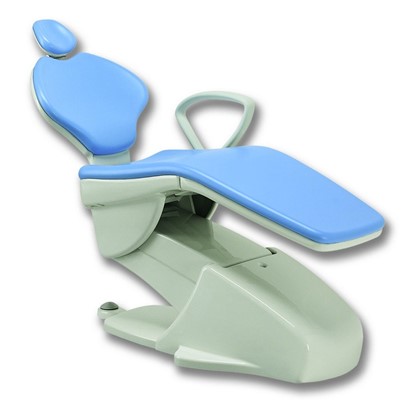

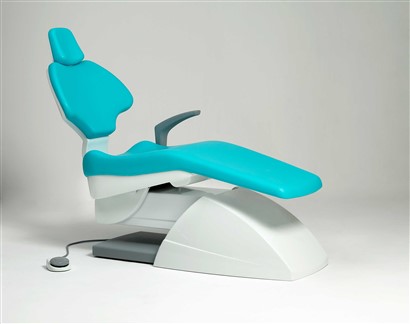

Ancar patient chair Spain

The Ancar patient chair is a precise balance of elegance, comfort, and functionality providing dental specialists with everything they need

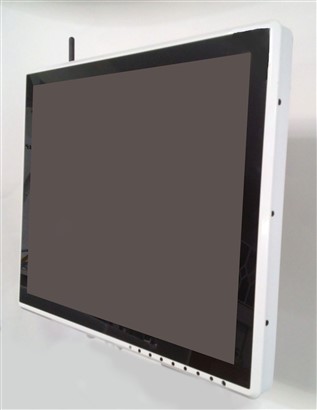

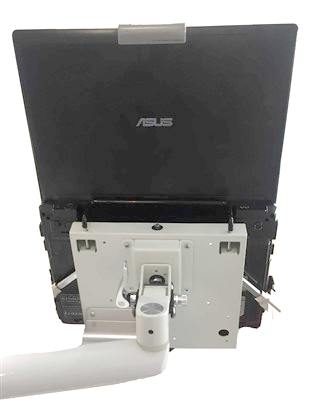

Monitor holder arm

With an internal cable equipped with a head

Italian patient chair

Italian light and camera ( full HD ) Console ( Frontier ) ( hanging tubes ) Italian light ( LED

LED Halogen Camera FULL HD

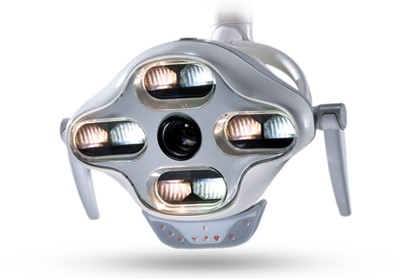

Full HD Led dental light IRIS VIEW  + more pic “our focus, your work“ At Gcomm we believe that quality

Foot control system

New foot control system (with manual and pedal control)

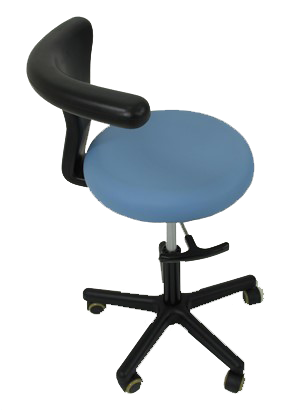

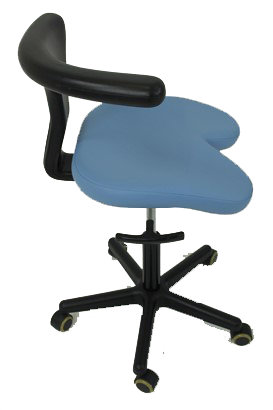

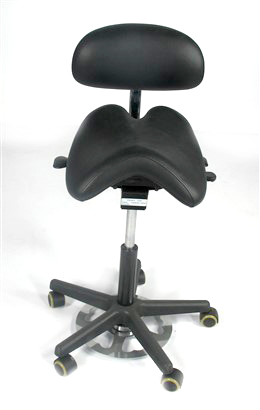

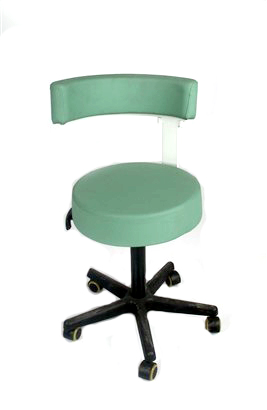

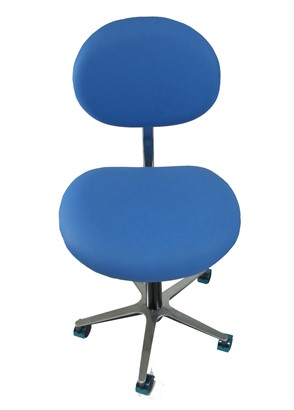

Elegance Dental stool

 Adjustable seat and backrest -

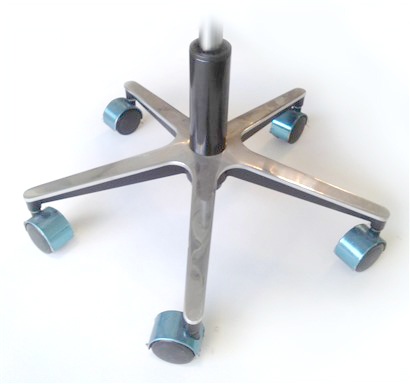

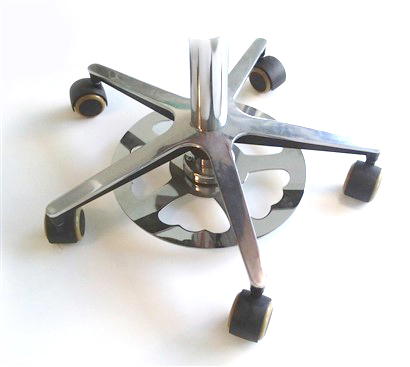

Aluminum base -

 Adjustable left-hand and right-hand armrest -

 Replaceable upholstery -

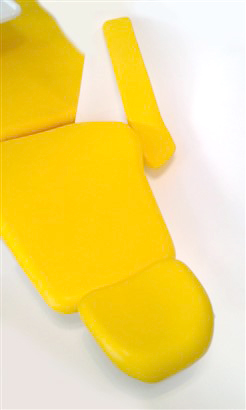

Seat, back and headrest

The seat, back and headrest of the Italian patient chair (new)

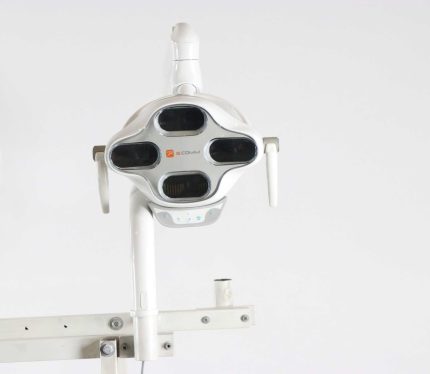

LED

G-COMM – Italian

Input voltage ( 110/220 V ) ( 50/60 Hz )

Output voltage ( 12-24 Vac ) ( 50-60 Hz )

Temperature ( 4200-6000 k )

LED Lamp consumption ( 50 VA )

Light intensity adjustment ( lux )

Adaptable light to the required level

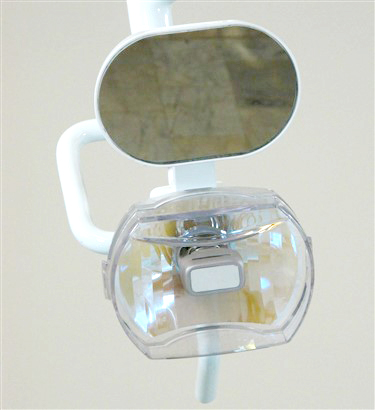

mirror

Patient mirror (can be installed on the head of Fakhr Sina lamp)

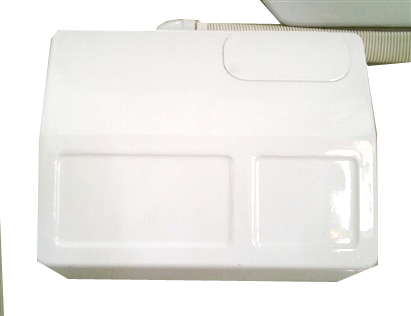

Installation box

Installation box in front of the patient's feet

Phosphor plate Acteon De-Gotzen model U-SCAN

Acteon – U-Scan Phosphor Plate Scanner FULLY AUTOMATED WORKFLOW FOR QUICK DIAGNOSIS The servo-assisted system, able to recognize, scan and

Phosphor plate

Acteon Imaging Plates, designed for use with the PSPIX 2 scanner, are available in various sizes (0, 1, 2, and 3), with Size 1 measuring 24 x 40mm and Size 2 measuring 31 x 41mm

These plates are known for their flexibility and thinness, offering patient comfort, and are compatible with both MAC and Windows operating systems

Size 0: 22 x 35 mm

Size 1: 24 x 40 mm

Size 2: 31 x 41 mm

Size 3: 27 x 54 mm

Size 4: 52 x 54 mm (constructed from two Size 3 plates)

:Key Features

Flexibility and Thinness: The plates are designed to be flexible and thin, enhancing patient comfort during intraoral imaging

· Image Quality: The PSPIX 2 scanner, along with the imaging plates, provides sharp and contrasted images for reliable clinical diagnosis

Ease of Use: The scanner automatically detects the plate size and optimizes the image, streamlining the workflow

Hygiene: The plates are designed to be used with hygiene bags for protection and are compatible with disinfection protocols

Software: The PSPIX 2 comes with Sopro Imaging software, compatible with both MAC and Windows, offering tools for image editing, exporting, and archiving

Scan Times: Fast mode: 1.6-2.7 seconds, High definition mode: 2.1-3.6 seconds

Resolution: 20 lp/mm

PSPIX2 model Acteon phosphor plate

Acteon Group

Acteon Group is a French Medtech Company Specialized in High Technology Dental And Medical Devices. At ACTEON strive every day to create new mini-invasive technologies in surgery, in X-Ray emission, in imaging and make them available to us with an intuitive digital connectivity.

Less invasive surgery creates more trust from your patients

Less X-Ray is more safety for everyone in your practice

Less compromise in image quality leads to better information ready to be analyzed by you

Less complexity provides the ability to create fruitful dialogue with your patients

ACTEON employs highly trained technical and sales teams based in 29 different offices around the world and has a distribution network that covers our markets in 94 additional countries

The advanced technology used inside this scanner marks a turning point in terms of excellence. The new PSPIX² is as much as three times smaller than other imaging plate scanners, making it the most compact system on the market!

With little space required due its size, dentists can now put a PSPIX² next to each operating chair to improve their workflow and productivity. With the scanner next to him, there is no longer a need to move to another room to scan the imaging plate. An exceptional, high quality, sharp image can be obtained within a few seconds, allowing a clinical diagnosis to be made very quickly. Moreover, the color backlight and the icons on the touchscreen provide guidance, making it highly intuitive. Featuring the exclusive “Click & Scan” concept, the PSPIX² is also designed for multi-use and can be shared by up to ten workstations at any one time!

Finally, the PSPIX² is the only scanner on the market with optional removable parts that can be sterilized in an autoclave to give maximum protection. The removable parts provided with each purchase comply with dental washer disinfector. The PSPIX² exceeds dentists’ expectations in terms of hygiene. The PSPIX² is fully compatible with both MAC and Windows interfaces to fulfill all the surgery’s needs.

:Data sheet

Company/ ‌‌Brand :Acteon

Country :France

Weight :2.6Kg

Power :AC100~240V

Unit Size :154×204×193mm

Resolution: 20lp/mm

Scan Time :Fast mode: 1.6-2.7s | High definition mode: 2.1-3.6s

X-MIND TRIUM Pan Ceph 3D jaw and face imaging device

The X-Mind Trium Pan Ceph 3D is a versatile dental imaging system that combines panoramic, cephalometric, and 3D CBCT capabilities

It features a high-frequency DC generator, a CMOS detector, and a range of acquisition programs for various dental and maxillofacial diagnostics

The system offers multiple field-of-view (FOV) options, including 40x40mm, 60x60mm, 80x80mm, and 110x80mm, allowing for focused or comprehensive imaging of specific areas or the entire dentition

:Key Specifications

X-ray Source: High-frequency DC generator, 60-85 kVp, 4-10 mA

· Detector: CMOS, with pixel size of 100 μm and various FOV options

:Acquisition

Single scan technique, exposure time ranging from 4 to 16.8 seconds, and reconstruction time from 3 to 2 seconds

· Image Format: JPEG, BMP, PNG, TIFF, and DICOM 3.0

· Mechanical Data: Maximum footprint of L 150 x W 172 cm, height up to 235 cm, and weight of 215 kg for the Pan-Ceph configuration

· IEC: Class I, Type B

:Features

:3D CBCT

Provides volumetric data for detailed analysis of teeth, jaws, and surrounding structures

Panoramic Imaging

Generates 2D panoramic images of the entire dentition, jaws, and TMJ

:Cephalometric Imaging

Enables cephalometric analysis for orthodontic and maxillofacial assessments

:Metallic Artifact Reduction

Includes a filter to minimize artifacts caused by metallic restorations, improving image clarity

:Multiple FOV Options

Offers a range of FOVs (40x40mm, 60x60mm, 80x80mm, 110x80mm) for various diagnostic needs

:Upgradeable

The system can be upgraded from a 2D panoramic unit to a 3D CBCT or cephalometric unit, providing flexibility as the practice grows

:Workstation

Comes with a pre-installed workstation PC, including Acteon Imaging Suite software and multiple licenses for 3D visualization and implant planning

Dc Radiography X-Mind Unity wall/top unit

Class 1 type B Classification : 100–240 V Supply voltage : 850 VA Maximum power absorption : TOSHIBA D-041 X-ray tube : 50/60

DC Portable X-Mind Unity Radiography

DC rayography with new timer, tube and arm Portable with locking wheels 2022 model Digital Timer, DC (HF), 60/65/70kV –

DC radiography on the wall/on the unit

:Data sheet

Company/ ‌‌Brand:DE Gotzen

Country :Italy

Model :Wall Mounted

Generator :DC High Frequency

Tube Voltage: 60-70kV

Tube Current :4-7mA

Anode Type -

Focal Spot Size: 0.4mm

Exposure Time: 0.02-2Sec

Total Filtration: 1.5mm Al

Power :AC100~240V

Remote controller: Yes

DC Portable radiography

:Detailed Specifications Generator: DC High Frequency Tube Voltage: 60-70kV Tube Current: 4-8mA Focal Spot: 0.7mm Exposure Time: 0.02-3.2 seconds Total

AC Wall-mount/ Unit-mount X-Ray machine

X Genus AC is functionally simple in design but at the same time is extremely sophisticated in features and benefits providing a single phase and a high frequency system in one

A system which sets a new standard in quality and safety. It has been engineered to work a high frequency mode

it's simple, intuitive anatomical controls assure perfect x-ray radiographic results with any patient and technique. its simplicity of use provides the radiological operator with complete control and a significant savings of time and money

:Data sheet

Company/ ‌‌Brand DE Gotzen

Country :Italy

Model :Mobile

Weight :23kg

Generator :AC High Frequency

Tube Voltage :70kV

Tube Current :8mA

Focal Spot Size :0.7mm

Exposure Time : 0.08-3.2Sec

Power : AC100~240V

Remote controller :Yes

AC Portable radiography

The DE Gotzen X-Genus AC portable radiography unit is a high-frequency, AC-powered X-ray system designed for intraoral radiography. It features

Duo Dry Compressor

Tank capacity of 70-35 liters Aeration of 120 liters per minute at pressure 5 times Duo With its 2-cylinder V

T-2 Dry Compressor

Technical Data

without membrane-drying unit

with membrane-drying unit

Voltage (V 1) 230 230
Frequency (Hz) 50/60 50/60
Cylinder 2 2
Flow rate at 5 bar1) (l/min)2) 125 125
Tank capacity (l) 20 20
Pressure range 3) (bar) 6 - 7,8 6 - 7,8
Noise level 4) at 5 bar db(A) 68 68
Noise level in the cabinet db(A) 56 56
Dimensions (H x W x D cm) 64 x 48 x 37 64 x 49 x 43
Weight (kg) 38

43



The discharge flow without dry air - Power bandwidth results from the mains frequency 50/60 Hz  - A pressure reducer is available as an optio  - Average values at 5 bar -

Tornado 2 – Super Silent Compressor

Equipped with engine security system Low voice (69DB) Tank capacity of 70-35 liters Tornado 2 – Super Silent The Tornado

P12000 Compressor

Equipped with engine security system Three phases (93db) 750 liter tank capacity Compressed air from Dürr Dental Apart from the

p9000 Compressor

Compressed air from Dürr Dental Apart from the powerful suction systems where a central separation system can be installed upline,

P6000 Compressor

Equipped with engine security system Three phases (90db) Tank capacity of 350 liters Compressed air from Dürr Dental Apart from

P3000 compressor

Equipped with engine security system Three phases (88DB) Tank capacity of 250 litersFor up to 12 workstations simultaneously. First-rate compressed

Quattro x4 free oil compressor

Equipped with engine security system Three phases (79db) Tank capacity of 200 liters Aeration of 960 liters per minute at

Quattro x3 oil free compressor

Equipped with engine security system Three phases (76db) Tank capacity of 150 liters Quattro Quattro, the first four-cylinder from Dürr

Quattro Tandem free oil compressoe

Quattro Tandem Quattro Tandem, the nonplus ultra in power for dental laboratories and large surgeries with a 90 litre tank,

Dry Air System drying unit

Membrane-drying unit All Dürr Dental compressors operate with innovative membrane-drying unit and therefore offer an unbeatable benefit: Permanent power availability.

QUATTRO oil free compressor

Quattro Quattro, the first four-cylinder from Dürr Dental. Maximum power with a 50 litre tank. For four operators. Unit for

Duo Tandem Compressor

Duo Tandem Duo Tandem is the flexible solution for growing power requirements Equipped with a 50 litre tank, it operates

Tornado 1 Tandem – Super Silent

Tornado 1 Tandem – Super Silent The Tornado is one of the quietest compressors in dentistry, yet it is still

Duo oil free compressor

With its 2-cylinder V unit, the Duo is the classic among the compact compressors with 20 litre tank For two

Tornado 2 – Super Silent

Tornado 2 - Super Silent

The Tornado is one of the quietest compressors in dentistry, yet it is still very powerful. The highly developed compressor set is extremely quiet, and can have a calming effect on both patient and practitioner.

Features:

Oil-free, dry, hygienic, taste and odourless compressed air

Very reliable thanks to the closed crankcase

Extremely low-noise

Plug ‘n’ play installation – place, plug in, ready

Specification:

Voltage: 230V

Frequency: 50/60Hz

Cylinder: 2

Flow rate at 5 bar (1/min): 125

Tank capacity: 20L

Pressure range (bar): 6-7, 8

Noise level: 68dB

Dimensions (with membrane-drying unit): H64 x W49 x D43

Weight (with membrane-drying unit): 43kg




The discharge flow without dry air- Power bandwidth results from the mains frequency 50/60 Hz- A pressure reducer is available as an option-

Average values at 5 bar-

T-1 Low Noise 20L Dry

Tornado 1 20L DRY- Super Silent

The Tornado is one of the quietest compressors in dentistry, yet it is still very powerful. The highly developed compressor set is extremely quiet, and can have a calming effect on both patient and practitioner.

Features:

  • Oil-free, dry, hygienic, taste and odourless compressed air
  • Very reliable thanks to the closed crankcase
  • Extremely low-noise
  • Plug ‘n’ play installation – place, plug in, ready

Specification:

  • Voltage: 230V
  • Frequency: 50/60Hz
  • Cylinder: 1
  • Flow rate at 5 bar (1/min): 67
  • Tank capacity: 20L
  • Pressure range (bar): 6-7, 8
  • Noise level: 64dB
  • Dimensions (with membrane-drying unit): H66 x W49 x D43
  • Weight (with membrane-drying unit): 37kg

T-1 Low Noise 20L

Tornado 1 20L - Super Silent

The Tornado is one of the quietest compressors in dentistry, yet it is still very powerful. The highly developed compressor set is extremely quiet, and can have a calming effect on both patient and practitioner.

Features:

  • Oil-free, dry, hygienic, taste and odourless compressed air
  • Very reliable thanks to the closed crankcase
  • Extremely low-noise
  • Plug ‘n’ play installation – place, plug in, ready

Specification:

  • Voltage: 230V
  • Frequency: 50/60Hz
  • Cylinder: 1
  • Flow rate at 5 bar (1/min): 67
  • Tank capacity: 20L
  • Pressure range (bar): 6-7, 8
  • Noise level: 64dB
  • Dimensions (with membrane-drying unit): H66 x W49 x D43
  • Weight (with membrane-drying unit): 37kg

Tornado 1 Low Noise 35L

Tornado 1 Low Noise 35L – Super Silent The Tornado is one of the quietest compressors in dentistry, yet it

V18000 Suction

Group with 6 suction machines incl. control unit with vacuum controller and 2 bacteria filters, remote monitoring possible For up

V15000 Suction

Group with 5 suction machines incl. control unit with vacuum controller and 2 bacteria filters, remote monitoring possible For up

V12000 Suction

V 12000 Group with 4 suction machines incl. control unit with vacuum controller and 1 bacteria filter, remote monitoring possible.

V9000 Suction

Group with 3 suction machines incl. control unit with vacuum controller and bacteria filter, remote monitoring possible. For up to 50 workplaces with max. 30 operators at the same time.

Technical data V 9000
Voltage (V 3~) 400
Frequency (Hz) 50 / 60
Electrical power (kW) 8,2 / 10,9
Current consumption (A) 16,6 / 19,6
Dimensions (H x W x D cm) 115 x 130 x 130
Space requirements (H x W x D cm) 115 x 230 x 230
Weight (kg) 215
Vacuum (mbar) 160
Noise level dB(A) 75 without housing, 66 with housing
Suction exhaust air connection (mm) 110/110 (DN 100)

V6000 Suction

Group with 2 suction machines incl. control unit with vacuum controller and bacteria filter, remote monitoring possible. For up to 30 workplaces with max. 20 operators at the same time.

Technical data V 6000
Voltage (V 3~) 400
Frequency (Hz) 50 / 60
Electrical power (kW) 5,6 / 7.4
Current consumption (A) 12,1 / 14,1
Dimensions (H x W x D cm) 115 x 130 x 130
Space requirements (H x W x D cm) 115 x 230 x 230
Weight (kg) 175
Vacuum (mbar) 160
Noise level dB(A) 73 without housing, 64 with housing
Suction exhaust air connection (mm) 110/110 (DN 100)

VS2400 Suction

Dry Central Suction For 8 operators and 14 treatment stations.Operators = Number of treatment stations with simultaneous operation Rooms = Number of stations

V1200 Suction

Dry Central Suction For four operators and six treatment rooms Operators = Number of treatment stations with simultaneous operation Rooms =

V600 Suction

The dry suction unit V600 (DÜRR DENTAL) is designed to be attached to dental units with a built-in separator, designed for aspiration of liquid and solid particles from the oral cavity Designed for simultaneous operation of 2 dental units. It can be connected to 3 dental units, provided the factor of simultaneous operation is not more than 60%

Equipped with a control module, which turns on the device when the 24 AC voltage is supplied from the dental unit

Suction Systems for dental surgeries – perfect suction power from Durr Dental

Powerful dry suction unit

In the case of dry air suction system, the separation function is integrated into the treatment units. Only dry air reaches the V Suction Unit.

Technical data

Voltage: 230V

Frequency: 50/60 Hz

Current consumption: 5 A

Power: 1.1 kW

Speed: 2,850 rpm

Vacuum without AAV (Auxiliary air valve) : 170 mbar

Noise level: approx. 63 dB(A)

Dimensions: H50 x W42 x D41 cm

Weight: 23 kg

V300 Suction

Suction Systems for dental surgeries – perfect suction power from Durr Dental Powerful dry suction unit In the case of

V250 Suction

Tyscor V 2 radial suction unit

We invented aspiration. Once again. In 1964, Dürr Dental developed a new suction system that allowed patients to be treated in a supine position for the first time. Back then it was a sensation, now we take it for granted. But it’s far from the end of our quest to continue to be the 'Best in Class', or rather to be the 'Best in Class' again and again.

The Tyscor VS 2, the first dry aspiration system with radial compressor in the field of dentistry, sets new standards in performance and efficiency. Naturally, 100 % made in Germany (at Bietigheim-Bissingen) for 100 % reliability.

More than 50 percent less weight and up to 50 percent saving of energy.* Radially brilliant! The intelligent control allows also operation with two Tyscor suction machines connected to only one suction line – for perfect operational reliability.

Voltage (V): 220 -

Frequency (Hz): 50 / 60 -

Revolutions/min (rpm): 2850 -

Vacuum level (mbar): 170 -

Network compatible -

Weight (Kg): 10 -

Noise level (dB(A)): 58 -

Power (W): 420 -

VS1200 Suction

Treatment chairs: 4-6 Simultaneous operators: 4 “VS“ stands for the combination of vacuum generation and separation. VS suction units are called

VS900 Suction

Treatment chairs: 3-5 Simultaneous operators: 3 “VS“ stands for the combination of vacuum generation and separation. VS suction units are

VS600 Suction

Treatment chairs: 2-3 Simultaneous operators: 2 “VS“ stands for the combination of vacuum generation and separation. VS suction units are

VS250 Suction

Power: 220V 1~, 420W, 50Hz Tyscor VS 2 radial suction unit We invented aspiration. Again. In 1964, Dürr Dental developed

CA 4 Amalgam Separator

Attractive design, excellent performance and a convenient disposal concept make the CA 4 amalgam separator from Dürr Dental a system

CA 1 Amalgam Separator

The CA1 is a self-cleaning amalgam centrifuge in a practical housing which can be used for equipping a treatment room

Vacuklav 123B Autoclave

Fast heating phase Short cycle time Perform comprehensive freshwater quality tests Low power consumption because of the different heating system

Hygoclave 50 Autoclave

The Hygoclave 50 is a benchtop, front-loading, automatic dental autoclave manufactured by Dürr Dental. It is a Class B sterilizer with a 17-liter chamber and is designed for efficient and user-friendly sterilization of dental instruments

:Key Specifications

Type: Class B, benchtop, front-loading, automatic autoclave

· Chamber Volume: 17 liters (4.49 gallons)

· Chamber Material: Stainless steel

· Dimensions: 493 x 484 x 642 mm (width x height x depth)

· Weight: 57 kg (empty)

· Supply Voltage: 220 V-60 Hz, 230 V-50/60 Hz, or 240 V-50 Hz

· Maximum Current Consumption (at 230V): 8.9 A

· Maximum Power Consumption (at 230V): 2050 W

· Fresh Water Container: 5.2 liters

· Sterilization Programs: Includes 134°C B Standard, 134°C B Standard Plus, 134°C B Prions, 134°C B Flash, and 121°C B Standard

· Standards: EN 13060, EN 61010-1, EN 61326, EN 61010-2-40

· User Interface: Features a high-resolution 5" touch screen with intuitive, color-coded icons for easy operation

Connectivity: Can be connected to practice networks and documentation software for data logging and monitoring

Safety Features: Includes automatic door locking, integrated water quality testing, and a universal program for complex hollow bodies

:Maximum Load

Unpackaged, bulky load (Type B): 5.5 kg

Packaged, bulky load (Type B): 3.5 kg

Porous load (Type B): 1.5 kg

Packaged, bulky load (B Flash): 0.5 kg

Porous load (B Flash): 0.2 kg

  Hygoclave 50

Hygoclave 50 Plus

Maximum Load for standard Cycles Type B
Unpackaged, bulky load 5,5 kg 6.5 kg
Packaged, bulky load 3.5 kg 4 kg
Porous load 1.5 kg 2 kg
Maximum load for B flash cycle
Packaged, bulky load 0.5 kg 0.7 kg
Porous load 0.2 kg 0.3 kg
Cycle times
134°C B Standard (hold time 5.5 min) 37 38
134°C B Standard Plus (hold time 5.5 min) 38 39
134°C B Prions (hold time 20 min) 49 50
134°C B Flash (hold time 5.5 min) 26 27
121°C B Standard (hold time 20.5 min) 56 56

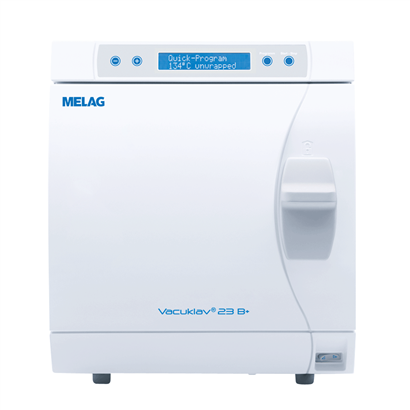

Vacuklav 23B Autoclave

Printer included  Device in accordance with the European Directive UNI EN 13060: 2010 Capacity of sterilization chamber 18/23 lt Two

Hygoclave 30 Autoclave

  Hygoclave 30 Sterilization made simple and reliable Sterile instruments and expertise are a prerequisite for successful dental treatment. The

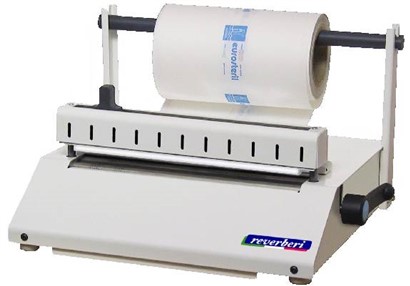

Lux Seal

Technical Features POWER SUPPLY: 230 V.a.c. +/- 10% POWER DRAW: 0.7 A POWER FLEX: 2000 mm WITH EEC HOMOLOGATED SOCKET

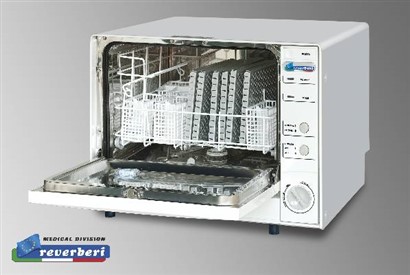

Instrument Mini Wash

Surgical instruments washer, specially designed for washing at 65°C all the instruments. Reduces bacterial, accelerates and simplifies the cleaning before sterilization

-Width 575 x depth 490 x H 465 mm

-Net weight: 25 kg

:Data sheet

Company/ ‌‌Brand:Reverberi

Country:Italy

Weight:27 Kg

Unit Size:575 x 490 x 465 mm

Produced Sound:dB(A)55

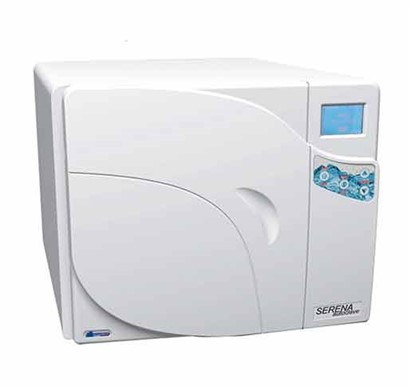

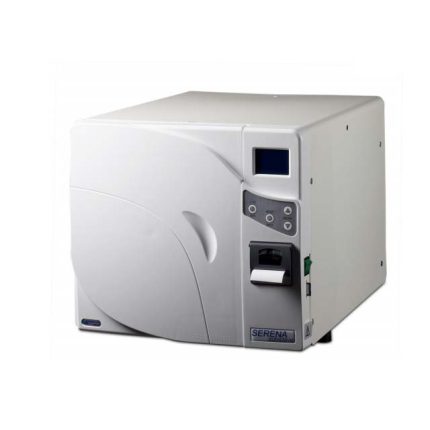

SERENA B23 Autoclave

Printer included

Device in accordance with the European Directive UNI EN 13060: 2010-

Capacity of sterilization chamber 18/23 lt-

Two sterilization temperatures: 121 ° C or 134 ° C-

Possibility of two programmable "special cycles"-

3 Universal sterilization cycles type B-

3 Test Cycles: 1) Vacuum test 2) Bowie & Dick test / Helix test 3) Spore test-

Prion Cycle, Night Cycle-

Delayed start of the cycle-

Motorized closing of the door-

Display for viewing operations with date and time and counting cycles-

Vacuum pump drying-

Additional drying at the end of the cycle-

Parameterization of the operator code-

Automatic water loading by the pump-

Sterilization Cycle Recording on Integrated SD Card-

Fractional vacuum-

Possibility of automatic filling via connection with Kiara - Tec water purifier-

Predisposition for connection to the printer-

Predisposition for connection to the labeler-

Possibility of connection to the computer-

SERENA B18 Autoclave

Technical Features Cycles programmables Closing motorized Stainless steel chamber 18-23 lt. New generation software Cycle incubation phial Operator coding Sterilization

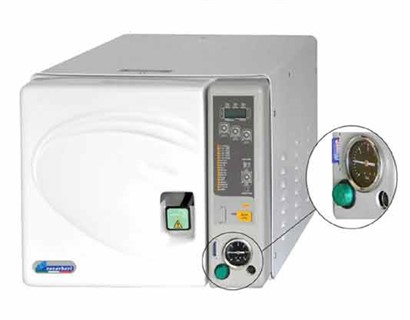

PRATIKA B20 Autoclave

Able to convert from Type S to Type B sterilizing at the touch of a button, the Siltex Pratika has been designed to combine all the benefits of a Class B sterilizer with the convenience of choice.  It has pre-vacuum and post-vacuum for more efficient sterilizing and drying, fully programmable sterilizing and drying cycles, a Bowie-Dick test cycle, vacuum test cycle and clean and waste water tanks

:Technical specs

Pre-Programmed Cycle Lengths

Unit dimensions: 45 x 39 x 58cm (w x h x d)

Unit weight: 45kg

Chamber capacity: 20 Litre - 24cm diameter, 43cm length

5 litre external dump tank

240V, 10A power outlet required

:Features

Type B or Type S sterilizing

20 litre chamber

121ºC or 134ºC sterilizing cycles

Closed door drying cycle

Digital temperature readout

User selectable cycle lengths

Printer option available

Thermal cut-out safety switches

External waste water dump tank7 litre chamber

inbuilt SD card for electronic backup

SD card reader

Accessories

Sterilizer comes with circular rack system and 4 trays, tray handle, 2 wire racks, dump tank and technical manual. Printers require one additional power point, and connect directly to the sterilizer

PRATIKA B16 Autoclave

PRATIKA are autoclaves designed and built in compliance with the operators’ need for functionalit practical use and safety Are fully

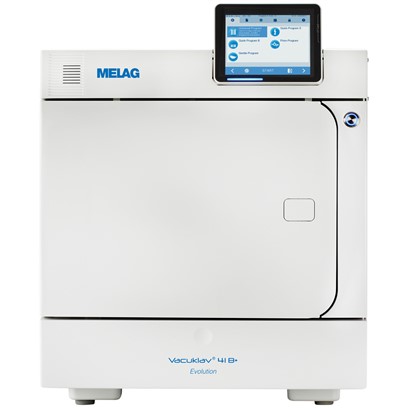

Vacuklav 41B Autoclave

Quick, easy-to-use and stand-alone – now with DRYtelligence This high-performance practice steam sterilizer brings the same record operating times as

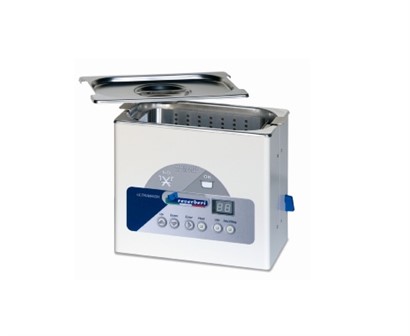

SuperSonic cleaner

DIMENSIONS (WxDxH): 320 x 260 x 250 mm TANK DIMENSIONS (WxDxH) : 300 x 240 x 150 mm TANK CAPACITY:

Blue Dent LED Bleaching

LED Bleaching 3600mW/sqm High effective restoring of teeth natural whiteness Even full arch bleaching with help of 10 powerful LED

Blue Dent light cure

Wireless 900mW/sqm Powerful single high-tech LED module – certain and quick result High intensity and portability – UV and IR

DTE Woodpecker light cure

:Data sheet Company/ ‌‌Brand Woodpecker Country China Model Wired Wave length 420-480nm Weight 135g Unit Size 260x25x26mm Bleaching Head No

DTE Handpieces

A Woodpecker manufactured autoclavable piezo scaler handpiece compatible with EMS scalers

Major DTE-V2 LED

Main unit input      24V~ 50Hz/60Hz 1.3A Output power        3W to 20W Frequency

Sopix2 Sopro Acteon sensor

CUTTING EDGE TECHNOLOGY The Sopix2 utilizes the best modern technology (Fiber-optic shielded CMOS) creating an excellent digital imaging sensor. Exceptional

quark innixim sensor

Tailor-made sensors With two sizes and two qualities, you can find the perfect combination for your practice. Outstanding images Choosing

After sales phone

00982166804494
00982166804496

Sales Department

00982166912351
00982166912352

Working Hours

Saturday to Wednesday: 9Am-17Pm
Thursdays: 9Am-14Pm

Fakhrsina

One of the first and largest manufacturers and importers of the highest quality dental equipment in Iran with half a century of experience

All rights are reserved for FakhrSina Company
1403-2024
E-mail : info@fakhrsina.ir
