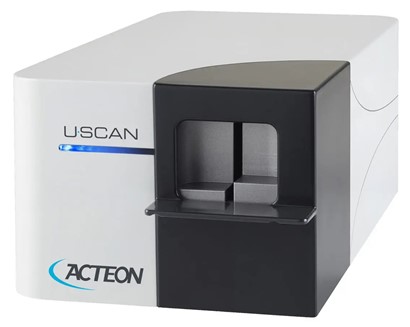

Phosphor plate Acteon De-Gotzen model U-SCAN
Acteon - U-Scan Phosphor Plate Scanner
FULLY AUTOMATED WORKFLOW FOR QUICK DIAGNOSIS
The servo-assisted system, able to recognize, scan and erase automatically the exposed plate, and the intuitive multi-colored LED indicator, which gives the operator a real-time feedback on the status of the workflow, are the key factors of the outstanding ease of use of U-SCAN
MAIN CHARACTERISTICS
ESSENTIAL AND COMPACT DESIGN FEATURING A CUTTING-EDGE TECHNOLOGY
The small dimensions (15x30cm) and lightness of U-Scan, only 4.1kg, make it an attractive and compact solution, ideal also for tight spaces
HIGH QUALITY IMAGES
The combination of a cutting-edge technology with the high resolution of 17lp/mm always ensures high quality images and reliability in diagnostics
:Reference
Data sheet
Company/ Brand Acteon
Country Italy
Weight 4.1Kg
Power AC100~240V
Unit Size 151×109×306mm
Resolution 17lp/mm
Scan Time 4.5-9s

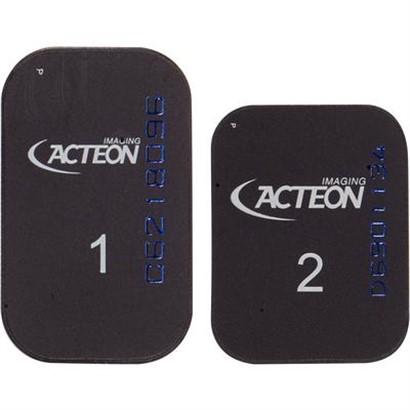

Phosphor plate
Acteon Imaging Plates, designed for use with the PSPIX 2 scanner, are available in various sizes (0, 1, 2, and 3), with Size 1 measuring 24 x 40mm and Size 2 measuring 31 x 41mm
These plates are known for their flexibility and thinness, offering patient comfort, and are compatible with both MAC and Windows operating systems
Size 0: 22 x 35 mm
Size 1: 24 x 40 mm
Size 2: 31 x 41 mm
Size 3: 27 x 54 mm
Size 4: 52 x 54 mm (constructed from two Size 3 plates)
:Key Features
Flexibility and Thinness: The plates are designed to be flexible and thin, enhancing patient comfort during intraoral imaging
· Image Quality: The PSPIX 2 scanner, along with the imaging plates, provides sharp and contrasted images for reliable clinical diagnosis
Ease of Use: The scanner automatically detects the plate size and optimizes the image, streamlining the workflow
Hygiene: The plates are designed to be used with hygiene bags for protection and are compatible with disinfection protocols
Software: The PSPIX 2 comes with Sopro Imaging software, compatible with both MAC and Windows, offering tools for image editing, exporting, and archiving
Scan Times: Fast mode: 1.6-2.7 seconds, High definition mode: 2.1-3.6 seconds
Resolution: 20 lp/mm

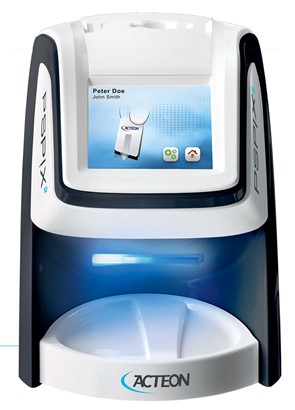

PSPIX2 model Acteon phosphor plate
Acteon Group
Acteon Group is a French Medtech Company Specialized in High Technology Dental And Medical Devices. At ACTEON strive every day to create new mini-invasive technologies in surgery, in X-Ray emission, in imaging and make them available to us with an intuitive digital connectivity.
Less invasive surgery creates more trust from your patients
Less X-Ray is more safety for everyone in your practice
Less compromise in image quality leads to better information ready to be analyzed by you
Less complexity provides the ability to create fruitful dialogue with your patients
ACTEON employs highly trained technical and sales teams based in 29 different offices around the world and has a distribution network that covers our markets in 94 additional countries
The advanced technology used inside this scanner marks a turning point in terms of excellence. The new PSPIX² is as much as three times smaller than other imaging plate scanners, making it the most compact system on the market!
With little space required due its size, dentists can now put a PSPIX² next to each operating chair to improve their workflow and productivity. With the scanner next to him, there is no longer a need to move to another room to scan the imaging plate. An exceptional, high quality, sharp image can be obtained within a few seconds, allowing a clinical diagnosis to be made very quickly. Moreover, the color backlight and the icons on the touchscreen provide guidance, making it highly intuitive. Featuring the exclusive “Click & Scan” concept, the PSPIX² is also designed for multi-use and can be shared by up to ten workstations at any one time!
Finally, the PSPIX² is the only scanner on the market with optional removable parts that can be sterilized in an autoclave to give maximum protection. The removable parts provided with each purchase comply with dental washer disinfector. The PSPIX² exceeds dentists’ expectations in terms of hygiene. The PSPIX² is fully compatible with both MAC and Windows interfaces to fulfill all the surgery’s needs.
:Data sheet
Company/ Brand :Acteon
Country :France
Weight :2.6Kg
Power :AC100~240V
Unit Size :154×204×193mm
Resolution: 20lp/mm
Scan Time :Fast mode: 1.6-2.7s | High definition mode: 2.1-3.6s

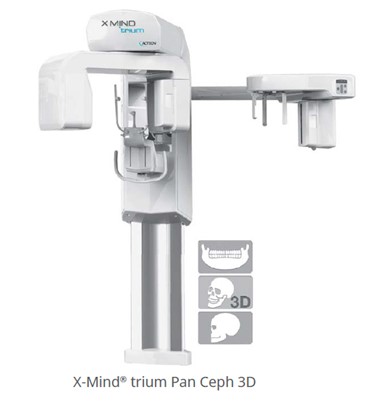

X-MIND TRIUM Pan Ceph 3D jaw and face imaging device
The X-Mind Trium Pan Ceph 3D is a versatile dental imaging system that combines panoramic, cephalometric, and 3D CBCT capabilities
It features a high-frequency DC generator, a CMOS detector, and a range of acquisition programs for various dental and maxillofacial diagnostics
The system offers multiple field-of-view (FOV) options, including 40x40mm, 60x60mm, 80x80mm, and 110x80mm, allowing for focused or comprehensive imaging of specific areas or the entire dentition
:Key Specifications
X-ray Source: High-frequency DC generator, 60-85 kVp, 4-10 mA
· Detector: CMOS, with pixel size of 100 μm and various FOV options
:Acquisition
Single scan technique, exposure time ranging from 4 to 16.8 seconds, and reconstruction time from 3 to 2 seconds
· Image Format: JPEG, BMP, PNG, TIFF, and DICOM 3.0
· Mechanical Data: Maximum footprint of L 150 x W 172 cm, height up to 235 cm, and weight of 215 kg for the Pan-Ceph configuration
· IEC: Class I, Type B
:Features
:3D CBCT
Provides volumetric data for detailed analysis of teeth, jaws, and surrounding structures
Panoramic Imaging
Generates 2D panoramic images of the entire dentition, jaws, and TMJ
:Cephalometric Imaging
Enables cephalometric analysis for orthodontic and maxillofacial assessments
:Metallic Artifact Reduction
Includes a filter to minimize artifacts caused by metallic restorations, improving image clarity
:Multiple FOV Options
Offers a range of FOVs (40x40mm, 60x60mm, 80x80mm, 110x80mm) for various diagnostic needs
:Upgradeable
The system can be upgraded from a 2D panoramic unit to a 3D CBCT or cephalometric unit, providing flexibility as the practice grows
:Workstation
Comes with a pre-installed workstation PC, including Acteon Imaging Suite software and multiple licenses for 3D visualization and implant planning
Jaw and face imaging device X-MIND TRIUM Pan Ceph
:X-MIND trium is a digital panoramic, cephalometric and tomographic extra-oral X-ray system, indicated for use in
producing panoramic X-ray images for diagnostic examination of dentition (teeth), jaws and oral structures-
producing radiographs of maxillofacial region and parts of the skull for cephalometric examination, if equipped with CEPH arm-
producing radiographs of hands and wrists for carpus examination, if equipped with CEPH arm-
producing tomographic images of the oral and maxillofacial region, for diagnostic examination of dentition (teeth), jaws-
oral structures and some cranial bones, if equipped with CBCT option
:From a clinical point of view, the X-MIND trium can be applied for the following medical applications
Generic dentistry -
Dental implantology -
Dental surgery -
Maxillo-facial surgery -
Cephalometric analysis -
Carpus radiology -

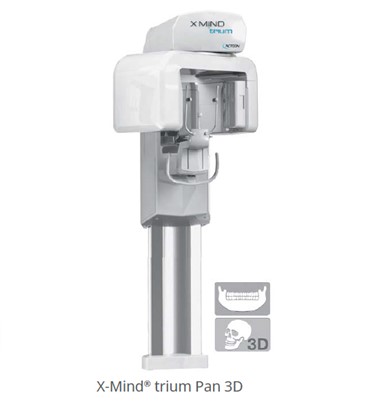

X-MIND TRIUM Pan 3D jaw and face imaging device
The ACTEON X-Mind Trium is a dental imaging system that offers both panoramic (PAN) and cephalometric (CEPH) radiography capabilities, along with optional Cone Beam Computed Tomography (CBCT). Degotzen, likely referring to the U-Scan phosphor plate system from ACTEON, is a separate but related technology for digital radiography
:X-Mind Trium Panoramic/Cephalometric Specifications
X-ray Source: High-frequency DC generator, with adjustable tube voltage (60-85 kVp) and anodic current (4-10 mA).
Detector: CMOS sensor with a pixel size of 100 μm.
Panoramic FOV: 260 x 148 mm
Cephalometric FOV: Options include 200 x 220 mm, 200 x 180 mm, 240 x 220 mm, and 240 x 180 mm
Exposure Time: Varies depending on the program and FOV, with panoramic scans around 9-16.8 seconds and cephalometric scans around 18 seconds
Scanning Time: 14 seconds for panoramic, and 23 seconds for cephalometric
Image Format: JPEG, BMP, PNG, TIFF
Mechanical: Max footprint L 150 x W 172 cm, height max 235 cm, weight 215 kg (PAN-CEPH)
Programs: Frontal PA, Frontal AP, Lateral LL, and optional Carpus for cephalometry; Standard, child, Improved Orthogonality, bitewings, maxillary sinus, and TMJ for panoramic
:Degotzen (U-Scan) Specifications
Technology: A phosphor plate system that captures images digitally
Image Quality: High image definition with 17 lp/mm resolution, ensuring accurate images for diagnosis
Workflow: Automated workflow with servo-assisted system for recognizing, scanning, and erasing plates
Compactness: Small dimensions (15x30cm) and lightweight (4.1 kg) for easy integration into dental practices
User Feedback: Multi-colored LED indicator for real-time feedback on the workflow statu

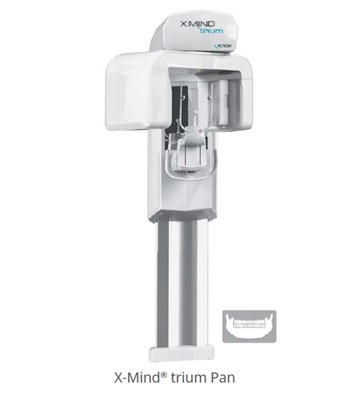

Jaw and face imaging device X-MIND TRIUM Pan
:X-MIND trium is a digital panoramic, cephalometric and tomographic extra-oral X-ray system, indicated for use in
producing panoramic X-ray images for diagnostic examination of dentition (teeth), jaws and oral structures-
producing radiographs of maxillofacial region and parts of the skull for cephalometric examination, if equipped with CEPH arm-
producing radiographs of hands and wrists for carpus examination, if equipped with CEPH arm-
producing tomographic images of the oral and maxillofacial region, for diagnostic examination of dentition (teeth), jaws-
oral structures and some cranial bones, if equipped with CBCT option
:From a clinical point of view, the X-MIND trium can be applied for the following medical applications
Generic dentistry -
Dental implantology -
Dental surgery -
Maxillo-facial surgery -
Cephalometric analysis -
Carpus radiology -

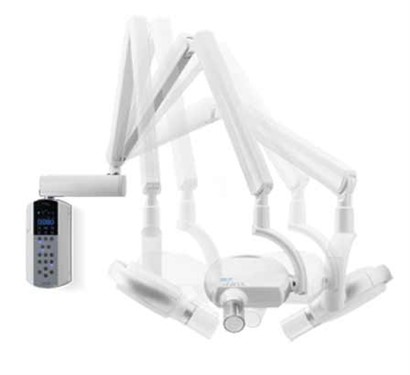

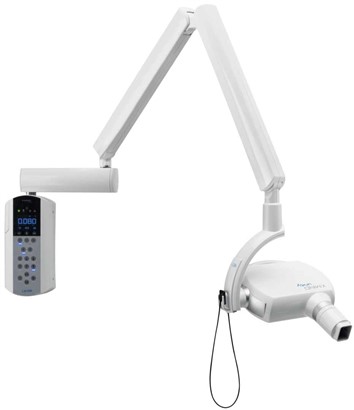

Dc Radiography X-Mind Unity wall/top unit
| Class 1 type B | Classification : |
| 100–240 V | Supply voltage : |
| 850 VA | Maximum power absorption : |
| TOSHIBA D-041 | X-ray tube : |
| 50/60 Hz | Frequency : |
| 0.4 mm | Focal spot : |
| >1.5 mm Al @ 70 kV | Total filtration |
| < 0,25 mGy / h | Leakage radiation |
| 32 s | Cooling duty cycle for 1 s : |
| High frequency DC | Technology |
| 2 s | Maximum anode current : |
| Film, phosphor plate, digital sensor | Compatibility : |
| 23 kg / ~51 lbs | Weight : |
| Wall mounting, top and bottom | Configuration : |
| Microprocessor controlled | Timer : |
DC Portable X-Mind Unity Radiography
DC rayography with new timer, tube and arm Portable with locking wheels 2022 model
Digital Timer, DC (HF), 60/65/70kV - 4~7mA - 0.02~3.2S, Focal Spot 0.4mm
Specifications
| Class 1 type B | Classification : |
| 100–240 V | Supply voltage : |
| 850 VA | Maximum power absorption : |
| TOSHIBA D-041 | X-ray tube : |
| 50/60 Hz | Frequency : |
| 0.4 mm | Focal spot : |
| >1.5 mm Al @ 70 kV | Total filtration |
| < 0,25 mGy / h | Leakage radiation |
| 32 s | Cooling duty cycle for 1 s : |
| High frequency DC | Technology |
| 2 s | Maximum anode current : |
| Film, phosphor plate, digital sensor | Compatibility : |
| 23 kg / ~51 lbs | Weight : |
| Wall mounting, top and bottom | Configuration : |
| Microprocessor controlled | Timer |

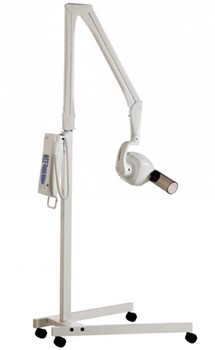

DC Portable radiography
:Detailed Specifications
Generator: DC High Frequency
Tube Voltage: 60-70kV
Tube Current: 4-8mA
Focal Spot: 0.7mm
Exposure Time: 0.02-3.2 seconds
Total Filtration: 2mm Al eq at 70 kV
Source-Skin Distance (SSD): 31 cm (12 inch) standard, optional 20 cm (8 inch) with short cone
Radiation Leakage: < 0.25 mGy/h at 1 meter
Timer: Digital with microprocessor control, capable of connecting two tubes
Control: Intuitive anatomical controls, can control two x-ray units
Safety: Automatic troubleshooting system, safety key, radiation leakage protection
Weight: 19.5 kg
Power Supply: 230V/115V
Mounting: Wall-mounted
Features: High frequency system at constant potential, intuitive anatomical controls, exposure time charts for various film types and digital systems
Other: Designed for use with RVG and PSP, aluminum filter for image clari

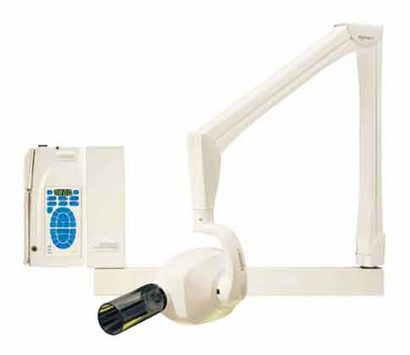

AC Wall-mount/ Unit-mount X-Ray machine
X Genus AC is functionally simple in design but at the same time is extremely sophisticated in features and benefits providing a single phase and a high frequency system in one
A system which sets a new standard in quality and safety. It has been engineered to work a high frequency mode
it's simple, intuitive anatomical controls assure perfect x-ray radiographic results with any patient and technique. its simplicity of use provides the radiological operator with complete control and a significant savings of time and money
:Data sheet
Company/ Brand DE Gotzen
Country :Italy
Model :Mobile
Weight :23kg
Generator :AC High Frequency
Tube Voltage :70kV
Tube Current :8mA
Focal Spot Size :0.7mm
Exposure Time : 0.08-3.2Sec
Power : AC100~240V
Remote controller :Yes
