V18000 Suction
Group with 6 suction machines incl. control unit with vacuum controller and 2 bacteria filters, remote monitoring possible For up to 100 workplaces with max. 60 operators at the same time
| Technical data | V 18000 |
| Voltage (V 3~) | 400 |
| Frequency (Hz) | 50 / 60 |
| Electrical power (kW) | 16,0 / 21,4 |
| Current consumption (A) | 30,1 / 36,1 |
| Dimensions (H x W x D cm) | 180 x 130 x 130 |
| Space requirements (H x W x D cm) | 180 x 230 x 230 |
| Weight (kg) | 415 |
| Vacuum (mbar) | 160 |
| Noise level dB(A) | 78 without housing, 66 with housing |
| Suction exhaust air connection (mm) | 2x 110 and 1x 160 |

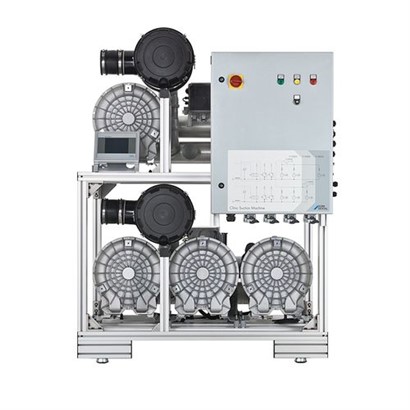

V15000 Suction
Group with 5 suction machines incl. control unit with vacuum controller and 2 bacteria filters, remote monitoring possible For up to 80 workplaces with max. 50 operators at the same time
|

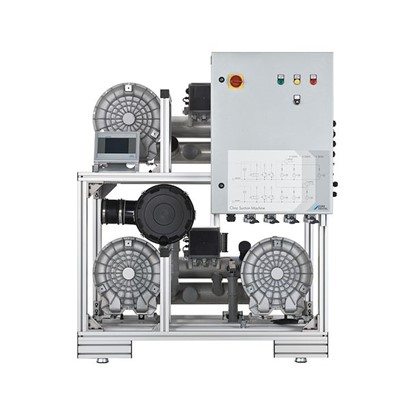

V12000 Suction
The V12000 Dürr suction system is a powerful, high-capacity unit with a maximum volume flow of 74/76 L/min and a noise level of approximately 61-62 dB(A) without a housing. Specifications for the V12000, which is often a configuration within the clinic systems, include a maximum flow rate of 76 liters per minute, a noise level of around 62 dB(A) (without housing), and it operates on a 400V 3~ power supply at 50/60 Hz.
Performance and operation :
- Maximum Volume Flow: 74/76 L/min
- Noise Level (without housing):61−62 dB(A)
- Noise Level (with housing): Varies, refer to specific model
Electrical specifications :
- Voltage: 400 V
- Frequency: 50/60 Hz
Other specifications :
- Type: Clinic suction system
- Intended Use: Scalable for multiple workstations
- Technology: Features an electronic control unit for optimized operation and reliability

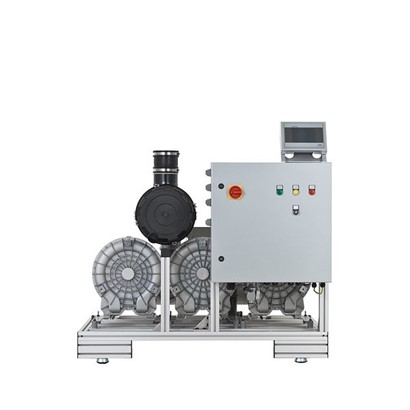

V9000 Suction
Group with 3 suction machines incl. control unit with vacuum controller and bacteria filter, remote monitoring possible. For up to 50 workplaces with max. 30 operators at the same time.
| Technical data | V 9000 |
| Voltage (V 3~) | 400 |
| Frequency (Hz) | 50 / 60 |
| Electrical power (kW) | 8,2 / 10,9 |
| Current consumption (A) | 16,6 / 19,6 |
| Dimensions (H x W x D cm) | 115 x 130 x 130 |
| Space requirements (H x W x D cm) | 115 x 230 x 230 |
| Weight (kg) | 215 |
| Vacuum (mbar) | 160 |
| Noise level dB(A) | 75 without housing, 66 with housing |
| Suction exhaust air connection (mm) | 110/110 (DN 100) |

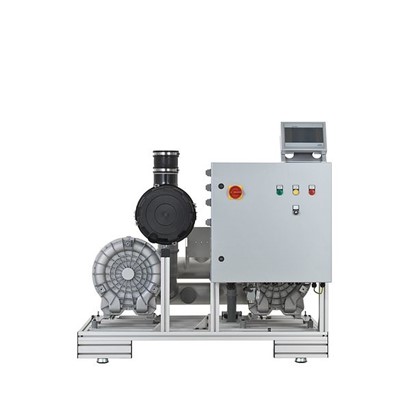

V6000 Suction
Group with 2 suction machines incl. control unit with vacuum controller and bacteria filter, remote monitoring possible. For up to 30 workplaces with max. 20 operators at the same time.
| Technical data | V 6000 |
| Voltage (V 3~) | 400 |
| Frequency (Hz) | 50 / 60 |
| Electrical power (kW) | 5,6 / 7.4 |
| Current consumption (A) | 12,1 / 14,1 |
| Dimensions (H x W x D cm) | 115 x 130 x 130 |
| Space requirements (H x W x D cm) | 115 x 230 x 230 |
| Weight (kg) | 175 |
| Vacuum (mbar) | 160 |
| Noise level dB(A) | 73 without housing, 64 with housing |
| Suction exhaust air connection (mm) | 110/110 (DN 100) |

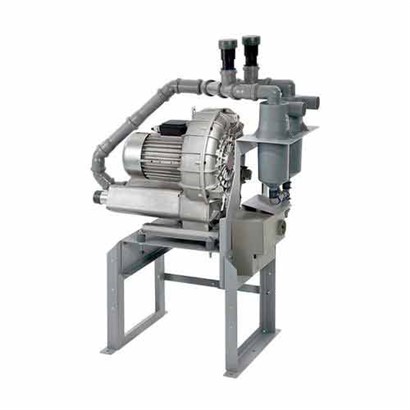

V2400 Suction
Dry Central Suction
For 8 operators and 14 treatment stations.Operators = Number of treatment stations with simultaneous operation
Rooms = Number of stations that can be connected with simultaneity factor 60%
Technical data
400 (Voltage (V 1~/V 3
Frequency (Hz) 50
3.3 (Power (kW
5.6/6.8 (Current consumption (A
Vacuum (mbar) AAV 170
Noise level dB(A) approx. 70
Dimensions (cm) 80*45*1150
Weight (kg) 68

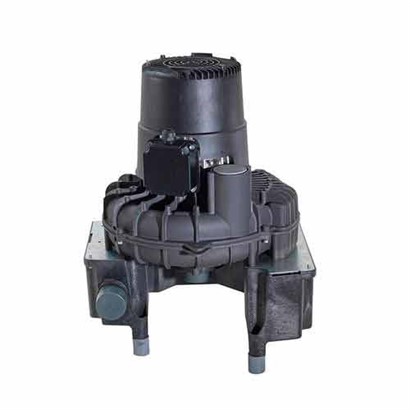

V1200 Suction
Dry Central Suction
For four operators and six treatment rooms
Operators = Number of treatment stations with simultaneous operation
Rooms = Number of stations that can be connected with simultaneity factor 60%
Technical data
400 (Voltage (V 1~/V 3
Frequency (Hz) 50
2 (Power (kW
3.6 (Current consumption (A
Vacuum (mbar) AAV 170
Noise level dB(A) approx. 66, with housing approx. 59
Dimensions (cm) 45*55*90
Separation rate With CA 4: 98.9%
Weight (kg) 32, with housing 48
V900 Suction
| V 900 S | Technical data |
| 230/400 | Voltage (V 1~/V 3~) |
| 50 | Frequency (Hz) |
| 6.3/3.6 | Current consumption (A) |
| 1.8/1.97 | Power (kW) |
| 2,850 | Speed (rpm) |
| 170 | Vacuum (mbar) with AAV |
| 100% | Cyclic duration factor (S1) |
| approx. 65, with housing approx. 58 | Noise level dB(A) |
| 52 x 42 x 42 57 x 62 x 42 (with condensate separator) 55 x 49 x 53 (with housing) | Dimensions (H x W x D cm) |
| 33, with housing 49 | Weight (kg) |
The dry air suction systems by Dürr Dental are extremely powerful yet run really quietly.
The V suction units are called dry systems because the aspirated substances are quickly guided into a separation/amalgam elimination unit. These components are integrated into the Dental Unit. Only dry air reaches the suction unit
Seven to eight hours of continuous operation are not unusual. This places high demands on the technology. Dürr Dental V suction machines fulfil these requirements tirelessly. The contact-free, rotating turbine wheels generate the required vacuum and flow rate (suction power)
A reliable electric motor enables non-stop operation. To reliably protect against condensated water, all models are fitted with a condensate separator as standard
:Feature
High-quality, robust drive motors
Reliable continuous operation
High-quality condensate separator to protect the unit from condensate
Runners made from corrosion-resistant plastic (V 300 S, V 600) or coated aluminium(V 900 S, V 1200 S)
High suction power within seconds

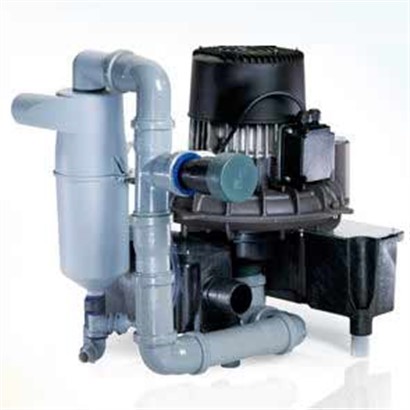

V600 Suction
The dry suction unit V600 (DÜRR DENTAL) is designed to be attached to dental units with a built-in separator, designed for aspiration of liquid and solid particles from the oral cavity Designed for simultaneous operation of 2 dental units. It can be connected to 3 dental units, provided the factor of simultaneous operation is not more than 60%
Equipped with a control module, which turns on the device when the 24 AC voltage is supplied from the dental unit
Suction Systems for dental surgeries – perfect suction power from Durr Dental
Powerful dry suction unit
In the case of dry air suction system, the separation function is integrated into the treatment units. Only dry air reaches the V Suction Unit.
Technical data
Voltage: 230V
Frequency: 50/60 Hz
Current consumption: 5 A
Power: 1.1 kW
Speed: 2,850 rpm
Vacuum without AAV (Auxiliary air valve) : 170 mbar
Noise level: approx. 63 dB(A)
Dimensions: H50 x W42 x D41 cm
Weight: 23 kg

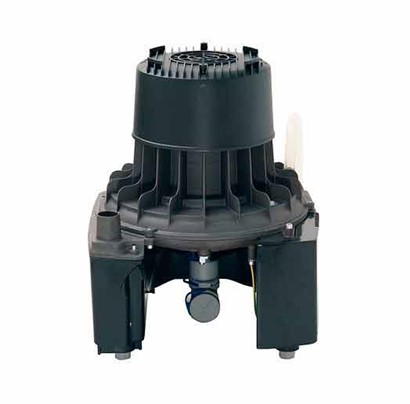

V300 Suction
Suction Systems for dental surgeries – perfect suction power from Durr Dental
Powerful dry suction unit
In the case of dry air suction system, the separation function is integrated into the treatment units Only dry air reaches the V Suction Unit
Technical data
Voltage: 230V
Frequency: 50/60 Hz
Current consumption: 2.9/3.7 A
Power: 0.58/0.8 kW
Speed: 2,850 rpm
Vacuum without AAV (Auxiliary air valve) : 180 mbar
Noise level: approx. 63 dB(A)
Dimensions: H37 x W31 x D31 cm
Weight: 12.5 kg

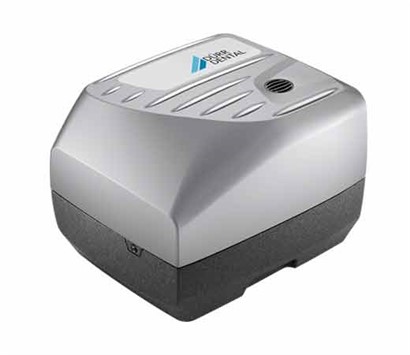

Tyscor V Suction
Tyscor V 2 radial suction unit
We invented aspiration. Once again. In 1964, Dürr Dental developed a new suction system that allowed patients to be treated in a supine position for the first time. Back then it was a sensation, now we take it for granted. But it’s far from the end of our quest to continue to be the 'Best in Class', or rather to be the 'Best in Class' again and again.
The Tyscor VS 2, the first dry aspiration system with radial compressor in the field of dentistry, sets new standards in performance and efficiency. Naturally, 100 % made in Germany (at Bietigheim-Bissingen) for 100 % reliability.
More than 50 percent less weight and up to 50 percent saving of energy.* Radially brilliant! The intelligent control allows also operation with two Tyscor suction machines connected to only one suction line – for perfect operational reliability.
Voltage (V): 220 -
Frequency (Hz): 50 / 60 -
Revolutions/min (rpm): 2850 -
Vacuum level (mbar): 170 -
Network compatible -
Weight (Kg): 10 -
Noise level (dB(A)): 58 -
Power (W): 420 -

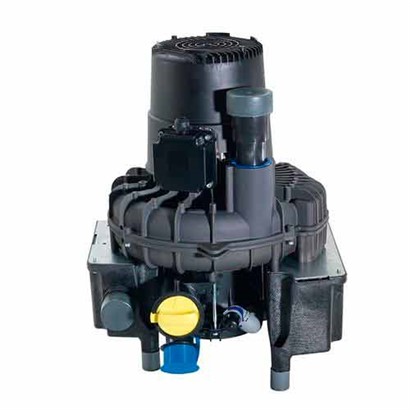

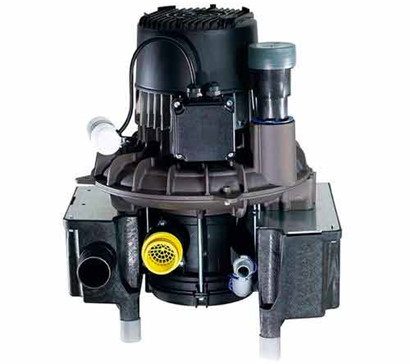

VS1200 Suction
Treatment chairs: 4-6
Simultaneous operators: 4
“VS“ stands for the combination of vacuum generation and separation. VS suction units are called wet systems because the entire suction and separation function is combined centrally in a VS suction unit on one drive shaft. This allows significant savings to be made. For example, there is no need for separate separation machines on the Dental Units and some of the operating costs of traditional systems – such as water ring pumps – are no longer relevant. Dürr Dental VS Suction Systems are power packs that you can rely on. They can aspirate large quantities of liquids and serve up to four operators at the same time without interruption. Thanks to the integrated two-stage separation system, the aspiration of secretions and blood foam into the turbine space is reliably prevented. The drive of the combination suction unit runs smoothly and without vibration and is extremely reliable. All important functional elements have corrosion protection finish, which contribute to their extraordinary long service lives
| Technical data | V 1200 S |
| Voltage (V 3~) | 400 |
| Frequency (Hz) | 50 |
| Current consumption (A) | 3.5 |
| Power (kW) | 1.9 |
| Dimensions without condensate separator (H x W x D cm) | 52 x 41 x 42 |
| Dimensions with condensate separator (H x W x D cm) | 57 x 62 x 42 |
| Dimensions with housing (H x W x D cm) | 55 x 49 x 53 |
| Vacuum (mbar) AAV 1) | 170 |
| Weight without housing (kg) | 33 |
| Weight with housing (kg) | 43 |
| Noise level 2) without housing dB(A) | approx. 66 |
| Noise level 2) with housing dB(A) | approx. 59 |
| Separation rate 3) | With CA 4: 98.9% |
