A Woodpecker manufactured autoclavable piezo scaler handpiece compatible with EMS scalers

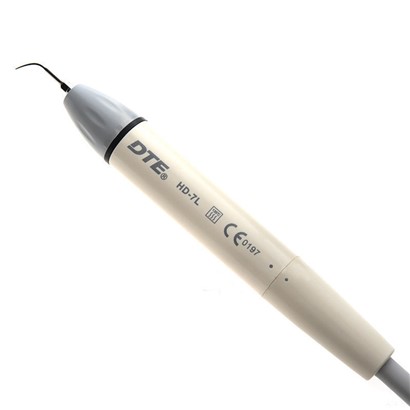

DTE  Handpiece HD-7L For Satelec/ NSK/ DTE scalers With LED

Compatible with SATELEC/ NSK/ DTE scalers

Sterilization in an autoclave (135ºC; 0.22MPa)

• Working Pressure: 0.22MPa.
• Ultrasonic Scaler Type: Piezoelectric.
• Autoclavable Temperature: 135℃

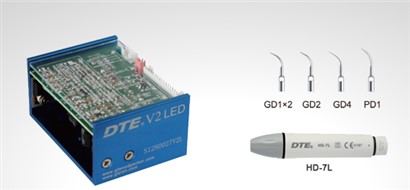

Key Feature: · Detachable handpiece autoclavable. · Scaling, endo function. · Automatic frequency tracking Technical Details: 1. Power input: Without transformer 24V~ 50Hz/60Hz 1.3A 2. Output primary tip Vibration excursion: ≤100μm 3. Output half-excursion force: <2N 4. Output tip Vibration frequency: 28kHz±3kHz 5. Output power: 3W to 20W 6. Water pressure: 0.01MPa to 0.5MPa 7. Weight of main unit: 0.2kg 8. Weight of transformer: 1kg (optional) 9. Dimensions:74mm×56mm×38mm 10. Operating mode: Continuous operation 11. Type of protection against electric shock: Class II 12. Degree of protection against electric shock: Type BF applied part 13. Degree of protection against harmful ingress of water: Ordinary equipment  (IPX0) 14. Degree of safety of application in the presence of a flammable anesthetic  mixture with air or with oxygen or nitrous oxide: 15. Five pieces of scaler tips attached, 2pcs of GD1, 1 pc of GD2, GD4, PD1 Equipment can not be used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide
